Bearing Number Dimension（mm) Steel Balls Load (KN) Max Rotation Speed(r/min) Weight(Kg)
d D B r Size Amount Cr(N) Cor(N) Grease Oil
Deep Groove Ball Bearings  of 16000 Series

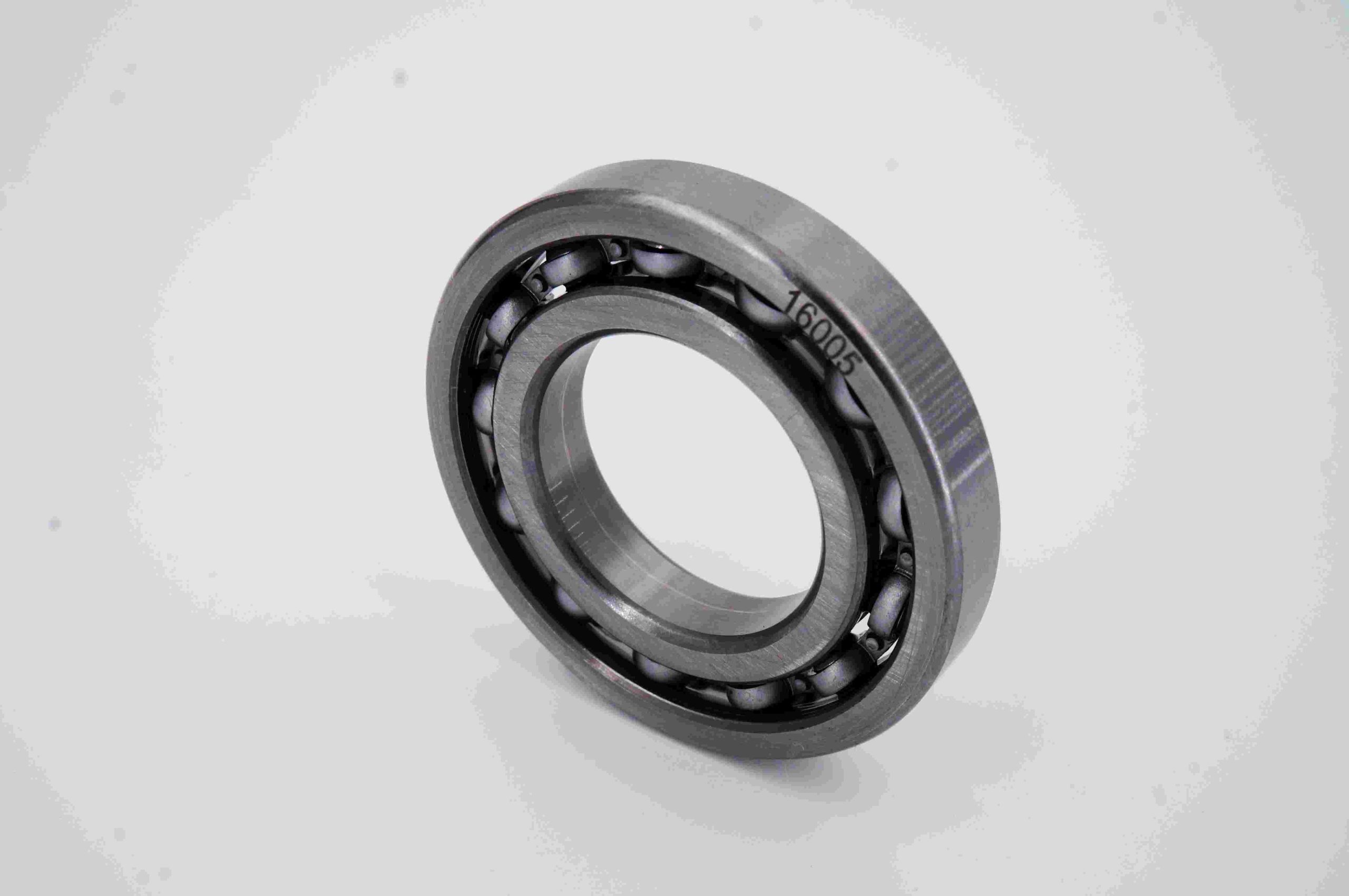

16005 25 47 8 0.3 5.556 12 8.8 5.6 13000 17000 0.06
16010 50 80 10 1 7.144 16 16.1 13.1 8000 9500 0.166
16011 55 90 11 1 7.938 16 19.4 16.2 7000 8500 0.207
16012 60 95 11 1 7.938 17 19.9 17.5 6300 7500 0.224
16013 65 100 11 1 7.938 18 20.5 18.6 6000 7000 0.241
16014 70 110 13 1 9.525 17 27.9 25 5600 6700 0.386
16015 75 115 13 1 9.525 18 28.7 26.8 5300 6300 0.411
16016 80 125 14 1.2 10.319 18 33.1 31.4 5000 6000 0.539
16017 85 130 14 1.2 10.319 19 34 33.3 4500 5600 0.668
16018 90 140 16 1.2 11.906 17 41.5 39.3 4300 5300 0.671
16019 95 145 16 1.5 11.906 18 42.7 41.9 4000 5000 0.71
16020 100 150 16 1.5 11.906 19 43.8 44.3 3800 4800 0.74
16021 105 160 18 1.5 13.494 17 51.8 50.6 3600 4500 1
16024 120 180 19 1.5 14.288 18 58.8 60.4 3000 3800 1.374
16026 130 200 22 2 17.462 16 79.7 79.2 2800 3600 1.868
16028 140 210 22 2 17.462 17 82.1 85 2400 3200 2
16030 150 225 24 2 18.256 18 91.9 98.5 2200 3000 2.638
16032 160 240 25 2 19.05 18 98.7 107 2000 2800 2.835
